ARTICULATED TRUCKS D20D

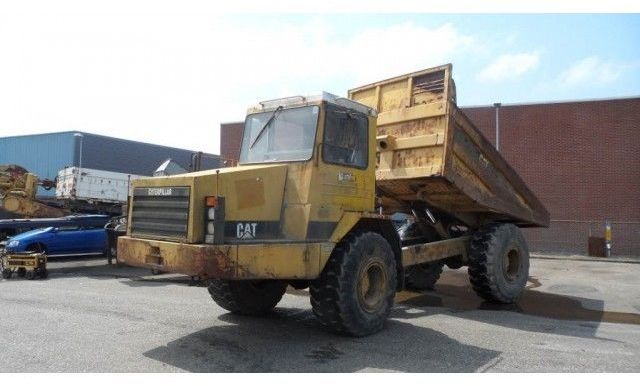

Cat Articulated trucks D20D with 18 ton rated payload and engine with Cat 3116.

• Engine Model Cat 3116

Cat 3116 with 153-261 bkW/205-350 bhp.

CATERPILLAR® ENGINE SPECIFICATIONS
In-Line 6, 4-Stroke-Cycle-Diesel
Bore —mm (in) . . . . . . . . . . . . . . . . . . . . . . . 105 (4.13)
Stroke—mm (in) . . . . . . . . . . . . . . . . . . . . . . . 127 (5.0)
Displacement — L (cu in) . . . . . . . . . . . . . . . 6.6 (402)
Rotation (from flywheel end). . Counterclockwise
Compression Ratio . . . . . . . . . . . . . . . . . . . . . . . . . 16:1
Capacity for Liquids — L (U.S. gal)
Cooling System . . . . . . . . . . . . . . . . . . . . . 28.0 (7.4)
Lube Oil System (refill) . . . . . . . . . . . . . . 25.0 (6.6)
Oil Change Interval. . . . . . . . . . . . . . . . . . . . . . 250 hrs
Engine Weight, Net Dry (approx) — kg (lb)
Turbocharged-Aftercooled (TA) . . . . . 681 (1500)

Ratings are based on SAE J1228/ISO8665 standard conditions of 100 kPa (29.61 in Hg) and
25° C (77° F). These ratings also apply at ISO3046/1, DIN6271, and BS5514 conditions of
100 kPa (29.61 in Hg), 27° C (81° F), and 60% relative humidity.
